AT DAQ-S
Test & Measurement Systems
Fully configurable end-of-line and functional test systems. PCBA FCT, EOL test, RF, CAN/LIN/K-Line protocols, machine vision, and firmware programming — all in a single station, on a fixed-price contract.
One station.
Every test your DUT needs.
AT DAQ-S is Artemis's configurable test software and hardware platform built on NI LabVIEW and PXI. It consolidates multiple test categories — electrical, protocol, RF, vision, firmware — into a single station with a single test sequence, a single operator touchpoint, and a single TDMS result file.
The hardware is specified to your DUT. The software is written to your test specification. The fixture is designed to your connector pinout and mechanical envelope. Nothing is off-the-shelf — but the platform foundation means we don't start from zero on every project.

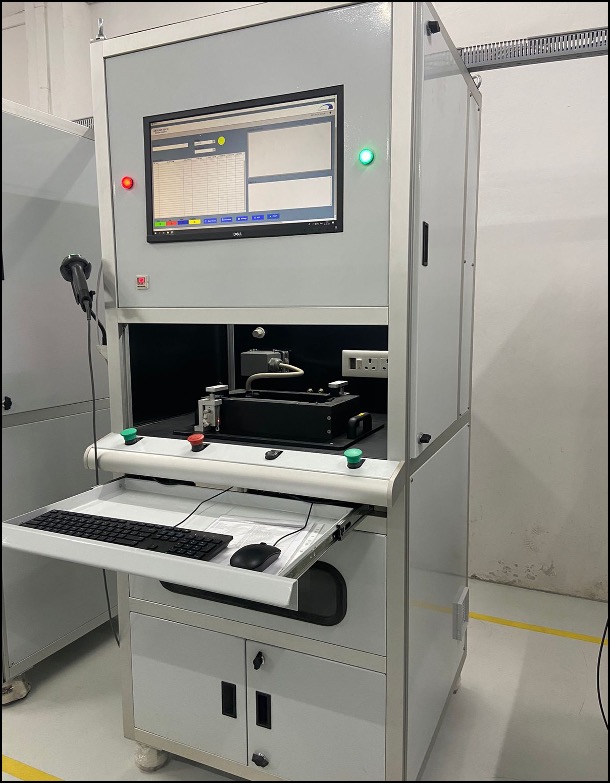

"Tests GPS, 4G, Bluetooth, and CAN in one station and logs every result in real time. Cycle time: 88 seconds. Zero test escapes in the first 3 months."
What AT DAQ-S tests — protocol by protocol
Every AT DAQ-S system delivers
Custom DUT Fixture
Designed to your connector pinout and mechanical envelope. Pogo pin or direct connector. Part-present sensor. Pneumatic clamping where required.
Full TDMS Traceability
Every test result — serial number, timestamp, all measured values, PASS/FAIL per parameter — logged to TDMS. CSV export and SQL write available.
Operator Guided UI
Step-by-step touchscreen prompts. Pass/fail displayed in plain English. No interpretation required from the operator. Multilingual support available.
Auto-Generated Test Report
PDF test report generated per DUT at cycle end. Includes all measurements, limits, PASS/FAIL, operator ID, and station ID. Ready for customer quality records.
Recipe-Driven Limits
Test limits loaded from external CSV/XML — no code change for limit updates. Password-protected limit editing. Variant selection by barcode scan.
MES / ERP Integration
OPC-UA, REST API, MQTT, Modbus TCP, SQL write. Real-time result push to MES. Barcode / RFID scan at station entry for traceability chain continuity.
AT DAQ-S — standard platform options
| Parameter | Specification | Notes |
|---|---|---|
| Core platform | NI LabVIEW 2020+ / NI PXI chassis | NI cDAQ and PC-based variants available for lower-cost configurations |
| Measurement accuracy | Voltage: ±0.01% of reading. Current: ±0.05% of reading. Power: ±0.1% | NI PXI-4110 / Keysight 34461A class instruments |
| Protocol interfaces | CAN/CAN FD, LIN, K-Line, RS-232, RS-485, USB A/C, Ethernet, 4G/LTE, GPS, Bluetooth, Wi-Fi, RF (up to 6 GHz) | Protocol selection per DUT requirement |
| Cycle time | Designed to customer's UPH target. Typical: 30–120 seconds per DUT | Parallel test sequencing used where DUT architecture allows |
| Fixture type | Custom pogo pin or direct connector. Pneumatic or manual clamping | Fixture mechanical drawing provided at Gate G3 |
| Operator UI | 10" or 15" colour touchscreen. Step-by-step guided test with PASS/FAIL display | LabVIEW front panel or NI TestStand-based sequence |
| Data logging | TDMS per DUT cycle. CSV / SQL / OPC-UA output | Local database + MES integration as required |
| Firmware programming | JTAG / SWD / UART bootloader. CRC verification. Version readback | Supported devices: STM32, NXP, Renesas, Microchip, TI |
| Safety | Hipot: up to 3kVAC / 4.2kVDC. Electrical safety per IEC 61010-1 | Interlock on fixture open. HV warning indicators |
| Enclosure | Steel powder-coated enclosure, IP54. 19" rack or bench-top configurations | Custom enclosure dimensions on request |
| Lead time | 6–10 weeks from DUT sample receipt to FAT | DUT sample required at Gate G4 for software development |
| Warranty | 12 months from SAT sign-off | AMC available from Year 2 |
The AT DAQ-S difference
- We write test software from your test specification — not from our assumptions. The first review meeting is about your DUT, not our platform.
- Multi-protocol in a single station. No separate RF station, no separate CAN station. One fixture, one operator action, one result file.
- NI LabVIEW platform means the test IP stays with you — readable, maintainable source code delivered as part of every project.
- DUT fixture designed in-house. Connector mapping, pogo pin layout, clamping mechanism — all engineered to your specific DUT geometry.
- Fixed price. You know the cost before we start. No time-and-materials surprises at the end of a 12-week project.
- We stay on site until the system passes SAT. Our engineers commission the tester on your floor, in your production environment.
Send us your test specification.
We'll send back a technical approach.
Share your DUT, your test parameters, and your cycle time target. We respond within 24 hours with a coverage plan and budget indication — no obligation.
Or call us: +91 9028269123 · sales@artemistech.co.in
