Browse our portfolio of custom automation systems — assembly lines, EOL test systems, SPMs, and software.
Semi-automatic assembly and 100% functional test line for 2-wheeler instrument clusters — 3 product variants, 800 units per shift. Required: display illumination, pointer sweep, CAN bus, button function, and IP54 seal verification. Previous supplier failed to deliver the CAN test capability.
6-station AT BUILD-L assembly and test line. Machine vision display test, AT DAQ-S CAN communication test (Vector CANalyser interface), air-decay seal test. Variant selection by barcode scan at entry — no manual recipe changes.
Scale from 200 units/day (manual assembly) to 1,000 units/day within 12 weeks. Required poka-yoke assembly with 100% AT 1000 / AT DAQ-S functional EOL test integrated for IEC 61851 compliance.
7-station AT BUILD-L semi-automatic assembly: PCB loading, torque-controlled fastening with data logging, connector presence verification, force-controlled cover closure, AT DAQ-S EOL test (voltage, current, efficiency, OCPP), laser labelling, and packing.

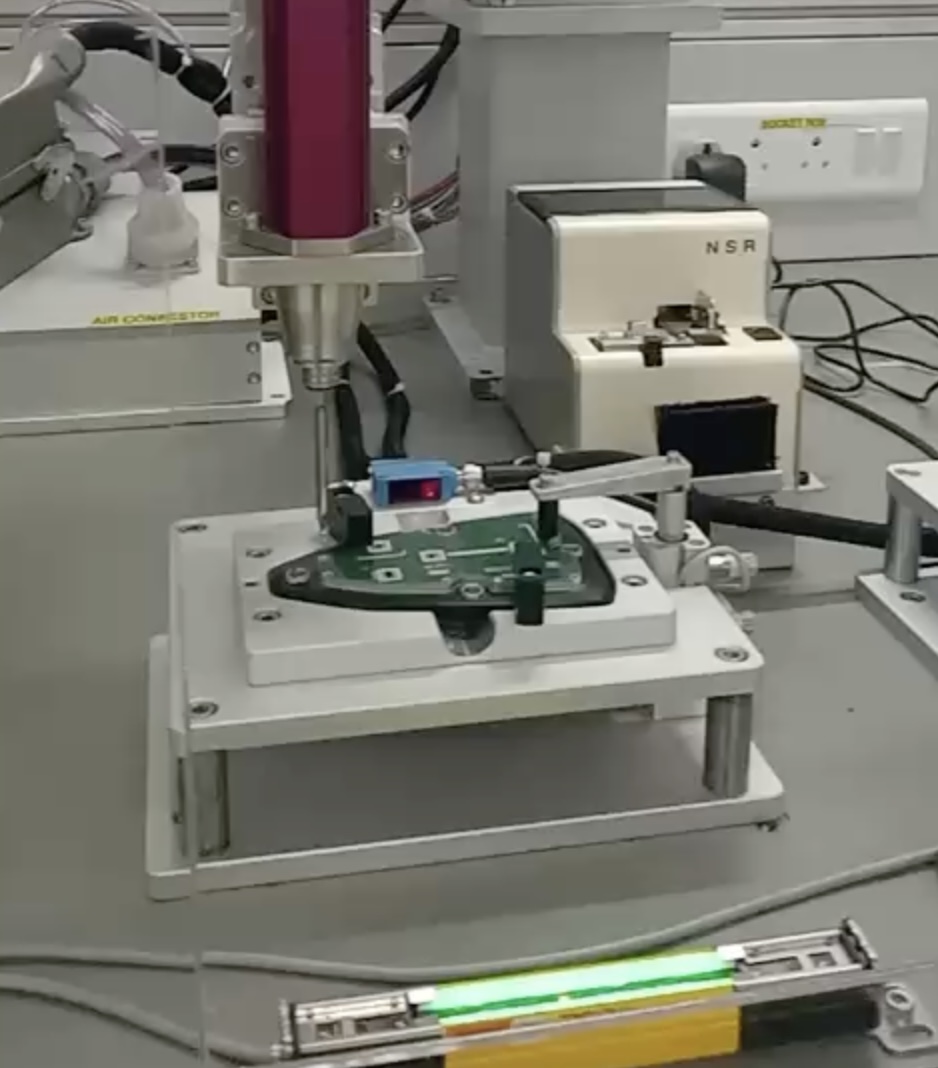

100% production test covering GPS, 4G/LTE, Bluetooth, Wi-Fi, CAN bus, and power management within a 90-second cycle. Previous approach used 3 separate stations causing test escapes and low throughput.
AT 1000 single-station EOL system with AT DAQ-S and purpose-built DUT fixture. All 6 test categories run sequentially: GPS (NMEA validation), cellular (AT command ping), Bluetooth/Wi-Fi (RF), CAN (message broadcast/receive), and power management.
Tell us your requirement. We respond within 24 hours with a technical assessment.
